Make Model

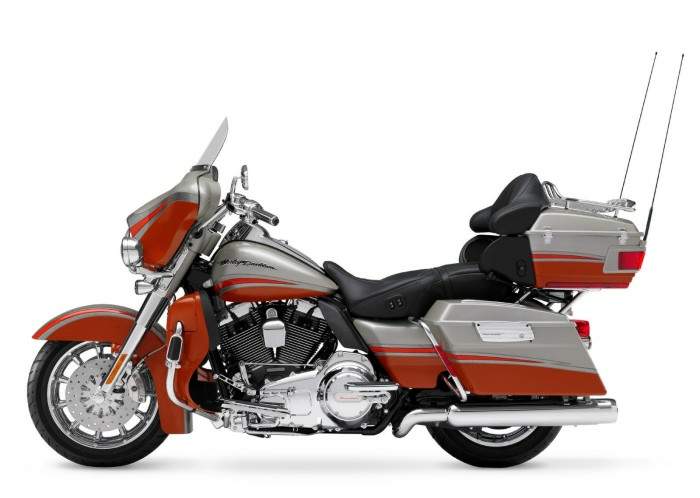

Harley Davidson FLHTCUSE4 Ultra Classic Electra Glide
Year
2009
Engine
Air cooled, four stroke, V-Twin, 'Twin Cam
Capacity
1802
Bore x Stroke 101.6 x 111.2 mm
Compression Ratio 9.3:1
Induction
Electronic Sequential Port Fuel Injection (ESPFI)
Ignition / Starting
- / electric
Max Power
Transmission / Drive
6 Speed / belt
Gear Ratio 1st 9.312 9.312 9.030 / 2nd 6.421 6.421 6.226 / 3rd 4.774 4.774 / 4.630 / 4th 3.926 3.926 3.807 / 5th 3.279 3.279 3.179 / 6th 2.790 2.790 2.706
Frame Mild steel, sqaure-section backbone with twin downtubes
Front Suspension
41.30 mm telescopic, 116mm wheel travel.
Rear Suspension
Swing Arm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Lowered, air-adjustable, 53mm wheel travel.
Front Brakes
2x 300mm discs 4 piston calipers, ABS Standard
Rear Brakes
Single 300mm disc 4 piston caliper, ABS Standard
Front Tyre
130/80B17
Rear Tyre
180/65B16
Seat Height 728 mm
Dry-Weight
402.43 kg
Fuel Capacity
22.7 Litres 6 gal
Delivering an exclusive design combo of the nostalgic Springer front end and a wide 240 mm rear tire and fender, Harley-Davidson Custom Vehicle Operations (CVO) rolls out a truly original motorcycle with the 2009 CVO Softail Springer. Based on a totally unique frame design with wide, fully polished and chrome-plated swing arm, fully polished chrome cast aluminum oil tank and a host of premium components and accessories, the CVO Softail Springer stands alone in the factory custom category.
As one of just two 2009 Harley-Davidson models with the quintessential Springer front fork design, the CVO Softail Springer presents a spiritual and exhilarating ride with authentic look and feel. The faithfully styled front end rides on an 18 x 3.5-inch Road Winder wheel and 130 mm tire with a new four-piston brake caliper with chrome forged mount, color-matched rigid forks and chromed spring components. The new wide 240 mm rear tire and custom Bobtail wide rear fender with louver accents ride on a new 18 x 8-inch Road Winder forged chrome wheel.
The third edition creation from Harley-Davidson CVO melds time honored Harley-Davidson engineering technology and styling creativity with an exclusive Screamin’ Eagle Twin Cam 110B engine, stunning Genuine Motor Accessories and sizzling color options.
With a new, exclusively designed frame, chrome swingarm and specially tuned suspension, the CVO Springer is a Softail unlike any other. The custom seat with Buffalo inserts highlighted by contrast embroidered flames and CVO logo stretches to a custom full-length chrome fuel tank console and is topped with a five-inch speedometer with spun aluminum face. The forward facing exposed Heavy Breather intake carries a special “110” tube emblem and chrome end cap. Other new components include a chrome slash-down staggered dual mufflers with full length exhaust shields, Bullet mirrors with shortened stems, and chrome-plated dipstick, fork inserts, fender struts and covers, swingarm pivot bolt covers, axle nut covers, tank emblems and wheel spacers.
The Harley-Davidson CVO group creates limited-production, exclusive motorcycles produced by a team of highly skilled technicians in a special assembly area at the Harley-Davidson plants in York, Pa., and Kansas City. Approximately 2,500 of the 2009 CVO Softail Springer will be assembled at the York Vehicle Operations facility. The suggested U.S. retail price for the 2009 CVO Softail Springer is $26,999 ($27,099 in California).
The CVO Softail Springer also features exclusive granite and chrome treatment on the largest-displacement production engine offered by Harley-Davidson. The Screamin’ Eagle 110-cid (1800cc) Twin Cam 110B, a high-performance V-Twin engine, delivers top performance with 110 ft. lbs. of torque at 3000 rpm thanks in part to the free flowing Heavy Breather intake. The engine is rigid-mounted in the Softail frame, equipped with internal counter-balanced shafts and is mated to a 6-speed Cruise Drive transmission for lower cruising rpm in top gear.
The Centerline accessory collection returns for 2009 with grips, footpegs and brake and shifter pedals, and horn cover. Chrome accessorized components include the brake and clutch master cylinders, voltage regulator, switch housings, belt guard, debris deflector and shift lever. Front and rear brakes include Road Winder rotors and the calipers match the Granite engine treatment.
The CVO Softail Springer will be offered in three exclusive color combinations for 2009: Black Diamond with Emerald Ice Flames, Candy Cobalt with Blue Steel Flames, and Sunrise Yellow Pearl with Volcanic Fury Flames. The metal grind flames are topped with Candy highlights making every vehicle truly custom. All models feature color-matched frame, rigid fork and top clamp, frame inserts, and a headlight bucket with custom graphics. A Harley-Davidson Smart Security System with Smart Siren, an indoor storage cover with CVO logo, and unique Harley-Davidson CVO key in a presentation box are also included.
There is simply no better way to cover big miles and ride great country roads than aboard the 2009 Custom Vehicle Operations (CVO) Ultra Classic Electra Glide from Harley-Davidson.
The CVO Ultra Classic Electra Glide melds custom paint, a potent powertrain and a well-chosen array of top line Harley-Davidson Genuine Motor Accessories to the all-new 2009 Harley-Davidson Touring chassis. The result is perhaps the most exciting touring motorcycle ever to roll over the horizon.
The skeletal structure of the CVO Ultra is all new from the front wheel to the wide rear tire. This new Touring line has a modular frame for enhanced maneuverability, a new 180 mm rear tire with a higher weight rating, a new 2-into-1-into-2 exhaust system and other enhancements that set a foundation for the next generation of Harley-Davidson Touring motorcycles. The CVO Ultra is powered by the CVO-exclusive granite coated Screamin’ Eagle Twin Cam 110-cid (1800 cc) engine, the largest displacement production engine offered by Harley-Davidson, producing 113 ft. lbs. of torque at 3750 rpm, as well as the smooth shifting 6-speed Cruise Drive transmission.
As part of a most discerning and well-traveled group of motorcyclists, CVO Ultra riders will enjoy extra amenities for 2009 such as a Tour-Pak mounting rack with increased carrying capacity, mid-frame air deflectors, and lighting and electrical updates that include shorter antennas. These features complement and preserve the commanding Ultra design along with mechanical features like Electronic Sequential Port Fuel Injection (ESPFI), six-gallon fuel tank, Brembo brakes and Anti-lock Braking System (ABS).
While ABS is designed to help maintain control during emergency stopping situations, especially those that happen in less than ideal conditions, the CVO Ultra also features Brembo front and rear brakes for maximum performance, feel and look.
The 2009 CVO Ultra rides on new Roulette wheels with a 180 mm, 16-inch rear tire and 130 mm, 17-inch front tire. For that extra comfort, there is the new suspended, dual-heated seat with shark print leather inserts. Newly styled foot controls and heated hand grips are called by the name Rumble Collection, which includes windshield trim, mirrors and saddlebag latches.
Other new components on the 2009 CVO Ultra include a matching rider and passenger backrest, Tour-Pak inserts, CB pod inserts, chrome push-button fuel door with CVO logo, smooth air cleaner cover, Screamin’ Eagle 110 air cleaner cover insert, two-inch backlit gauges, braided stainless steel clutch and brake lines, custom oil cooler with chrome cover and the Air Wing Tour-Pak luggage rack.
The Harley-Davidson CVO program creates limited-production, exclusive motorcycles produced by teams of technicians in a special assembly area at the Harley-Davidson plants in York, Pa., and Kansas City. Approximately 4,200 examples of the 2009 CVO Ultra will be assembled at the York Vehicle Operations facility. The suggested U.S. retail price for the 2009 CVO Ultra is $35,499 ($35,699 in California).
Based on the Harley-Davidson Ultra Classic Electra Glide, the CVO Ultra offers premium amenities from that model such as a 160-watt CD/AM/FM/WB/MP3 Advanced Audio System by Harman-Kardon, CB and intercom, and passenger audio with controls, cruise control, plus standard XM Radio and integrated navigation system. The bike is also protected by the Harley-Davidson Smart Security System with Smart Siren.
CVO Ultra features also include a power-locked saddlebags and Tour-Pak locking system with integrated key fob activation, internally wired handlebar with Electronic Throttle Control, oil filter mount with internal thermostat and chrome voltage regulator. The CVO Ultra rides on the Touring-exclusive air-adjustable rear suspension. Instruments with spun-aluminum metal faces are mounted below a custom black-leather inner fairing pad with chrome trim.
The CVO Ultra will be offered in three exclusive color combinations: Ruby Red and Typhoon Maroon with Forge-tone graphics, Autumn Haze and High Octane Orange with Forge-tone graphics and Stardust Silver and Twilight Blue with Forge-tone graphics. The vented lower fairings and inner fairing and switch panel are color-matched to the selected paint scheme. An indoor storage cover with CVO logo and a unique Harley-Davidson CVO key in a presentation box are also included.
Features of the 2009 CVO Ultra Classic Electra Glide include:
Rubber-mounted, air-cooled, Screamin’ Eagle Twin Cam 110 engine with granite and chrome finish
Electronic Sequential Port Fuel Injection (ESPFI)
6-Speed Cruise Drive transmission
Deluxe Ultra King Tour-Pak with Air Wing luggage rack, increased load capacity, new inserts, map pocket, plush liners, LED interior light and color-matched wrap-around lights
Internally-wired one-inch chrome handlebar with electronic throttle control
New chrome four-inch mufflers with chrome billet end caps
New CB pod insert
New chrome push button fuel door with CVO logo
New smooth air cleaner cover with Screamin’ Eagle 110 insert
New Roulette wheels
New braided stainless steel front brake and clutch lines
New suspended dual control heated seat with passenger backrest and complementary adjustable rider backrest with shark print leather inserts
Chrome Touring exhaust shields
Standard Anti-lock Braking System
Brembo front and rear brakes
Six-gallon fuel tank
New Paint:
Ruby Red and Typhoon Maroon with Forge-tone graphics
Autumn Haze and High Octane Orange with Forge-tone graphics
Stardust Silver and Twilight Blue with Forge-tone graphics
Color-matched vented fairing lowers with plush lined storage compartments, painted inner fairing, switch panel and saddlebag filler strips, and custom leather chrome accentuated dashpad
40 watt per channel Advanced Audio System by Harman/Kardon with CD/AM/FM/XM/WB radio receiver, CB/Intercom, amplifier, navigation system and front and rear speakers
Chrome voltage regulator
Chrome billet timer cover
Chrome front axle covers
Chrome fork sliders and chrome upper fork covers
Chrome lower triple tree cover
Chrome custom passing lamp brackets with bullet-style front turn signal
Chrome clutch and brake master cylinders
Chrome switch housings and hand levers
Chrome extended-reach billet brake lever
Chrome billet heel/toe shift levers
Chrome rider footboard supports and adjustable passenger footboard supports
Chrome valve stem cover caps
Chrome front wheel bearing spacers
Tear drop front custom floating brake rotors
Screamin’ Eagle SYN3 Synthetic lubricant
Black high-torque 1.4 kW starter
High-performance clutch with hydraulic actuation
Oil cooler with chrome cover
Front brake calipers with CVO inserts
Bullet style rear turn signals mounted on chrome hooded turn signal bar
Smoked turn signal lenses with amber bulbs
Electra Glide lightly smoked low windshield
Adjustable fairing-mounted air deflectors
Spun aluminum metal-faced speedometer, tachometer and new two-inch auxiliary gauges with backlighting
Cruise control
Polished stainless steel hex shift linkage
Stealth Collection rider and passenger footboard pans
Rumble Collection:
Rider and passenger footboard inserts
Heated grips and grip end caps
Brake pedal pad
Shifter pegs
Highway pegs with chrome billet engine guard mounting
Saddlebag latch covers
Mirrors
Windshield trim
Integral garage door opener and receiver
Saddlebags and Tour-Pak power locking system with integrated key fob activation
Carryout saddlebag and Tour-Pak liners
Saddlebag plush liners
Harley-Davidson Smart Security System
Indoor storage cover with embroidered CVO logo
Unique Harley-Davidson CVO gold key with box
Key CVO Features
The pride and passion that define Harley-Davidson and its riders are prominent in the Motor Company’s Custom Vehicle Operations (CVO) line of motorcycles. As the upper echelon of the motorcycle world, CVO models are hand-built with detailed craftsmanship and stand as the most desirable custom motorcycles available.
The 2009 model year marks the 10th anniversary of the Harley-Davidson CVO program. An effort that began a decade ago as a response to rider requests for factory custom motorcycles has evolved into the top class of its industry, proving that production is really the only limit when it comes to making Harley-Davidson CVO motorcycles.
“Features like bigger engines, exclusive accessories and custom paint and colors, combined with limited production quantities make the Harley-Davidson CVO motorcycles truly unique and inspirational,” said Matt Levatich, Harley-Davidson Vice President and General Manager, Parts & Accessories and CVO. “The CVO bikes were introduced to meet customer desires and they have fulfilled our riders’ ultimate dreams with miles of memories and great riding for a decade. We expect the unique CVO experience to continue for years to come.”
